Manufacturing Cycle Time

Description

Master Data – Cycle Time is a professional measurement and validation tool designed for manufacturing environments, process engineering and master data governance.

Measure real production cycle times with high precision and capture each completed cycle instantly without interrupting operations. Each measurement series runs from START to STOP and automatically calculates key statistical indicators in real time.

Mean, median and standard deviation enable rapid assessment of repeatability and process variability. Abnormal cycles are identified using ±2σ statistical control limits to detect unstable or non-representative performance.

Visualize process stability through a real-time trend chart including min, mean and max reference levels to support engineering analysis and data-driven decision-making.

Convert cycle time instantly into operational KPIs such as Pieces per Hour (PC/H) and Hours per 1000 Pieces (H/1000PC), enabling live capacity estimation, workload planning and industrial cost analysis.

Organize measurements into structured analysis campaigns. Within a single campaign, record multiple series for different articles, batches, machine setups or operating conditions. Each series can include an optional comment and can be reviewed or deleted before final validation.

The intuitive interface and campaign-based structure make it easy to maintain high-quality cycle time master data directly from the shop floor. Production data can be validated, adjusted and secured using statistically controlled measurements before integration into ERP/MRP systems.

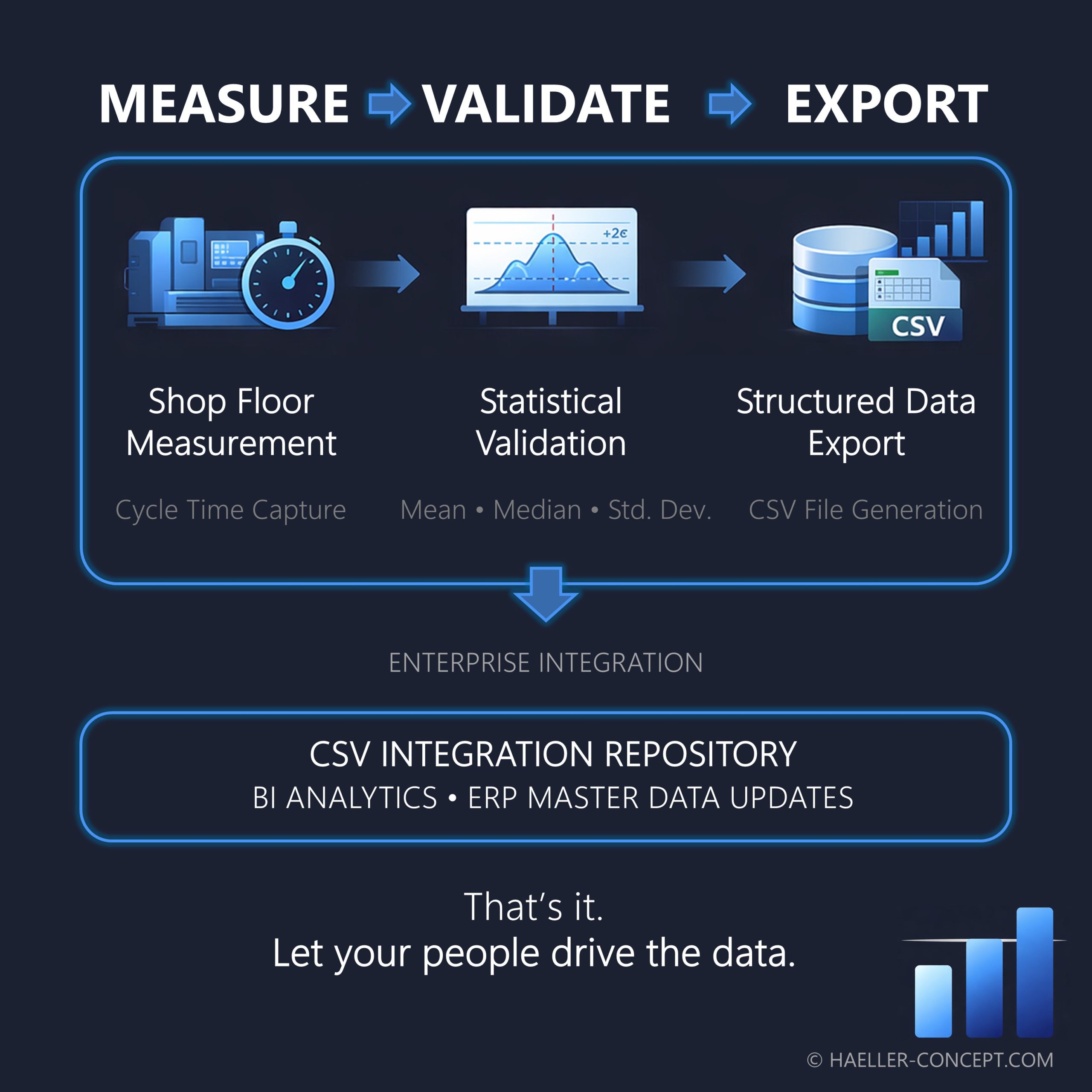

All collected data can be exported in a consolidated, structured CSV file and easily transmitted to Information Systems teams for continuous master data updates. Each cycle includes full contextual information, statistical indicators and classification (OK / LOW / HIGH), ensuring traceability, consistency and reliable ERP parameter maintenance.

Designed for industrial professionals who require reliable, traceable and statistically robust production data to ensure sustainable and high-quality master data management.

Copyrights 2026 HAELLER-CONCEPT.COM – Laurent Haeller

ABB TERRA SMART CHARING SOLUTION

Learn how to pilot an ABB Terra charging station (via Modbus RS485 / TCP-IP / WIFI) to recharge your electric car in the smartest and most cost-effective way possible based on the availability and power of solar energy, as well as other consumers. Standalone Node-RED piloting application, with Modbus Serial TCP/RTU RS422/232/485 To Wifi HF2211 Conversion Module.

Simple, inexpensive, effective ! This is SMART…
